Payment

SDK supports 2 flows of making payment:

With bank pre-selection In this flow You call method to select user bank first and then call method to make payment using that bank. You can use this flow to allow user to select bank before gathering all data required to initiate payment.

Without bank pre-selection In this flow You call method to make payment without providing institutionId. Bank selection will always be displayed by SDK before making payment.

In both flows, after successful payment, bank InstituionData used for payment is returned to in ActivityResult. You can cache and use it as default for future payments. In case payment fails, user can either select different bank (without leaving SDK context) or cancel process and return to your app.

To initiate bank selection screen and payment screen, InstitutionInitiationData and PaymentInitiationData are required respectively.

Kotlin documentation

Kotlin documenation for SDK methods can be found here

Pre-select bank and initiate payment with institutionId

Select bank

Create ActivityResultLauncher

ActivityResultLauncher is used when launching bank selection screen. Activity result can be parsed using SDK helper method parseInstitutionResult(result: ActivityResult) to obtain selected bank InstitutionData data class.

class MainActivity : Activity() {

    private val institutionLauncher = registerForActivityResult(ActivityResultContracts.StartActivityForResult()) {
        if (activityResult != null) {
            val institutionData = Checkout.parseInstitutionResult(activityResult)
        }
    }
    // ...
}

Note: If user cancel bank selection, then ActivityResult is null.

Create InstitutionInitiationData and call Checkout.selectInstitution(...)

Calling `Checkout.selectInstitution(...) method opens SDK Activity that allows user to select bank.

import io.volt.sdk.Checkout
import io.volt.sdk.model.Currency
import io.volt.sdk.model.InstitutionInitiationData

class MainActivity : Activity() {
    // ...
    fun selectBank() {
        val institutionInitiationData = InstitutionInitiationData(
                currency = Currency.EUR,
                defaultCountryCode = "DE",
                isInstitutionFirstTimeSelection = true,
            )
        Checkout.selectInstitution(
            context = this,
            launcher = launcher,
            institutionInitiationData = institutionInitiationData
        )
    }
}

Where:

Prop

Type

If user have not previously selected bank isInstitutionFirstTimeSelection MUST be set to true.

To change previously selected bank use Checkout.selectInstitution(). In this case InstitutionInitiationData.isInstitutionFirstTimeSelection should be set to false.

import io.volt.sdk.Checkout
import io.volt.sdk.model.Currency
import io.volt.sdk.model.InstitutionInitiationData

class MainActivity : Activity() {
    // ...
    fun selectBank() {
        val institutionInitiationData = InstitutionInitiationData(
            currency = Currency.EUR,
            defaultCountryCode = "DE",
            isInstitutionFirstTimeSelection = false,
        )
        Checkout.selectInstitution(
            context = this,
            launcher = institutionLauncher,
            institutionInitiationData = institutionInitiationData
        )
    }
}

Display Volt's Terms and Condition

Add Volt Terms and conditions View to your UI. To obtain formatted string use one of two methods:

Checkout.getAgreementClauseAnnotated(urlColor: Color?): AnnotatedString for Compose based project
Checkout.getAgreementClauseSpannable(context: Context, urlColor: Int?): Spannable for View based project

When user clicks on Terms and conditions view, Volt's terms and conditions page is opened in external browser.

<TextView
android:id="@+id/textView"
android:layout_width="wrap_content"
android:layout_height="wrap_content" />

class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        val textView: TextView = findViewById(R.id.textView)
        textView.text = Checkout.getAgreementClauseSpannable(this)
        textView.movementMethod = LinkMovementMethod.getInstance();
    }
}

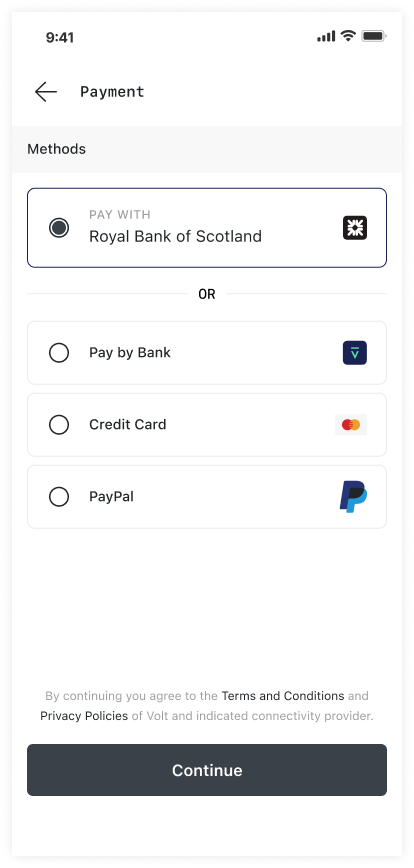

Terms and Conditions View

Pay with selected bank

Use InstitutionData returned from Select Bank step to initiate payment process.

Create ActivityResultLauncher

ActivityResultLauncher is used when launching payment screen. Activity result can be parsed using SDK helper method parsePaymentResult(result: ActivityResult) to obtain PaymentData

class MainActivity : Activity() {
    private val paymentLauncher = registerForActivityResult(ActivityResultContracts.StartActivityForResult()) {
       val paymentData = Checkout.parsePaymentResult(activityResult)
    }
    // ...
}

Create PaymentInitiationData

import io.volt.sdk.model.Currency

class MainActivity : Activity() {
    // ...
    fun pay() {
        val paymentInitiationData = PaymentInitiationData(
            currency = Currency.EUR,
            defaultCountryCode = "DE",
            institutionData = institutionData,
            amount = 100,
            paymentReference = "<paymentReference>",
            internalReference = "<internalReference>",
            userAgent = "AppName: MyPaymentApplication, AppVersion: X.Y.Z, DeviceModel: XYZ, OSVersion: X.Y.Z",
            payer = PayerData(
                reference = "<payerReference>",
                organisationName = "<organisationName>",
                firstName = "<firstName>",
                lastName = "<lastName>"",
                email = "<email>"",
                phoneNumber = "<phone>",
            ),
            transactionType = TransactionType.SERVICES
        )

        // ...
    }
}

Initiate payment process

Calling Checkout.pay(...) method opens SDK Activity that initiate payment.

import io.volt.sdk.Checkout

class MainActivity : Activity() {
    // ...
    fun pay() {
        // ...
         Checkout.pay(
            context = this,
            launcher = paymentLauncher,
            paymentInitiationData = paymentInitiationData
        )
    }
}

After payment is complete and SDK Activity is dissmissed, use Checkout.parsePaymentResult(result: ActivityResult): PaymentData? to parse result and obtain PaymentData object containing payment status.

For best user experience, you should cache PaymentData.InstitutionData and use it for future payments.

Initiate payment without bank pre-selection

Implementing this flow is similar to implementing Pay with selected bank. The difference is in passing null as value of PaymentInitiationData.institutionData

Create ActivityResultLauncher

ActivityResultLauncher is used when launching payment screen. Activity result can be parsed using SDK helper method parsePaymentResult(result: ActivityResult) to obtain PaymentData

class MainActivity : Activity() {
    private val paymentLauncher = registerForActivityResult(ActivityResultContracts.StartActivityForResult()) {
       val paymentData = Checkout.parsePaymentResult(activityResult)
    }
    // ...
}

Create PaymentInitiationData

import io.volt.sdk.model.Currency

class MainActivity : Activity() {
    // ...
    fun pay() {
        val paymentInitiationData = PaymentInitiationData(
            currency = Currency.EUR,
            defaultCountryCode = "DE",
            institutionData = null,
            amount = 100,
            paymentReference = "<paymentReference>",
            internalReference = "<internalReference>",
            userAgent = "AppName: MyPaymentApplication, AppVersion: X.Y.Z, DeviceModel: XYZ, OSVersion: X.Y.Z",
            payer = PayerData(
                reference = "<payerReference>",
                organisationName = "<organisationName>",
                firstName = "<firstName>",
                lastName = "<lastName>"",
                email = "<email>"",
                phoneNumber = "<phone>",
            ),
            transactionType = TransactionType.SERVICES
        )

        // ...
    }
}

Initiate payment process

Calling Checkout.pay(...) method opens SDK Activity that initiate payment.

import io.volt.sdk.Checkout

class MainActivity : Activity() {
    // ...
    fun pay() {
        // ...
         Checkout.pay(
            context = this,
            launcher = paymentLauncher,
            paymentInitiationData = paymentInitiationData
        )
    }
}
